Home product center

Product Category:Electronic and electrical lubricating grease

Product Features: Product Features: Suitable for low current and low voltage applications; low viscosity. Free of organosilicone; will not cause electrical contact failure. ...

Hotline:13316998426
Product Features

Product Features:

  • Suitable for low current and low voltage applications; low viscosity.

  • Free of organosilicone; will not cause electrical contact failure.

  • Arc-extinguishing, prevents sparks, reduces electromagnetic interference, ensures low contact resistance, and lowers temperature rise.

  • Contains copper anti-oxidants to effectively prevent oxidation of copper strips, formation of resistive films, and contact failure.

  • Non-carbonizing; special synthetic base oil provides good conductivity.

  • Enhances contact lubrication and reduces copper strip wear.

Storage Conditions:

  • Store in a cool, dry place, protected from direct sunlight and wind.

  • Do not mix with other greases; strictly avoid contamination with foreign substances.

Packaging Specifications:

  • 6 KG/Carton, 1 KG/Can

Limited Warranty Information – Please Read Carefully:
The information provided here is accurate to the best of our knowledge. However, since the conditions and methods of use are beyond our control, this information cannot replace the customer’s own testing to ensure product safety, effectiveness, and suitability for a specific end-use. Any usage recommendations provided must not be construed as infringing on any patents. MSDS/SDS are available from the manufacturer upon request.

Application scope
Applicable Products:

This product is suitable for reducing friction on copper contacts in encoders, switches, and similar devices.

Product parameters

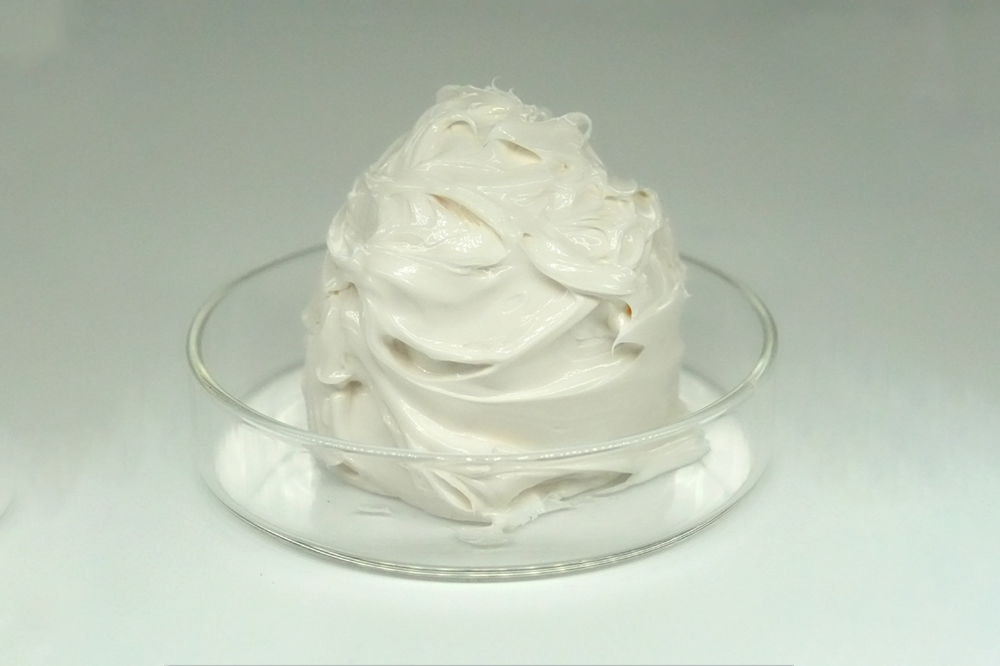

Technical Parameters of Switch Grease EC1

Test Item

Measured Value

Test Method / Standard

Base Oil

Synthetic Ester

Thickener

Lithium Soap

Appearance

Light yellow, uniform grease

Consistency Grade

0

NLGI

Penetration (0.1 mm)

355–385

GB/T 269-91

Operating Temperature (℃)

-40 ~ 150

Four-Ball Wear Scar (mm)

0.83

SH/T 0204-92

Copper Corrosion

1a

GB/T 5096-85

Evaporation Loss (wt%)

< 0.36

GB/T 7325-87

Oil Separation by Steel Mesh (wt%)

< 20.75

SH/T 0324-2010

Environmental Certification

RoHS, REACH, Halogen, 19P, EN71

Shelf Life (years)

6
